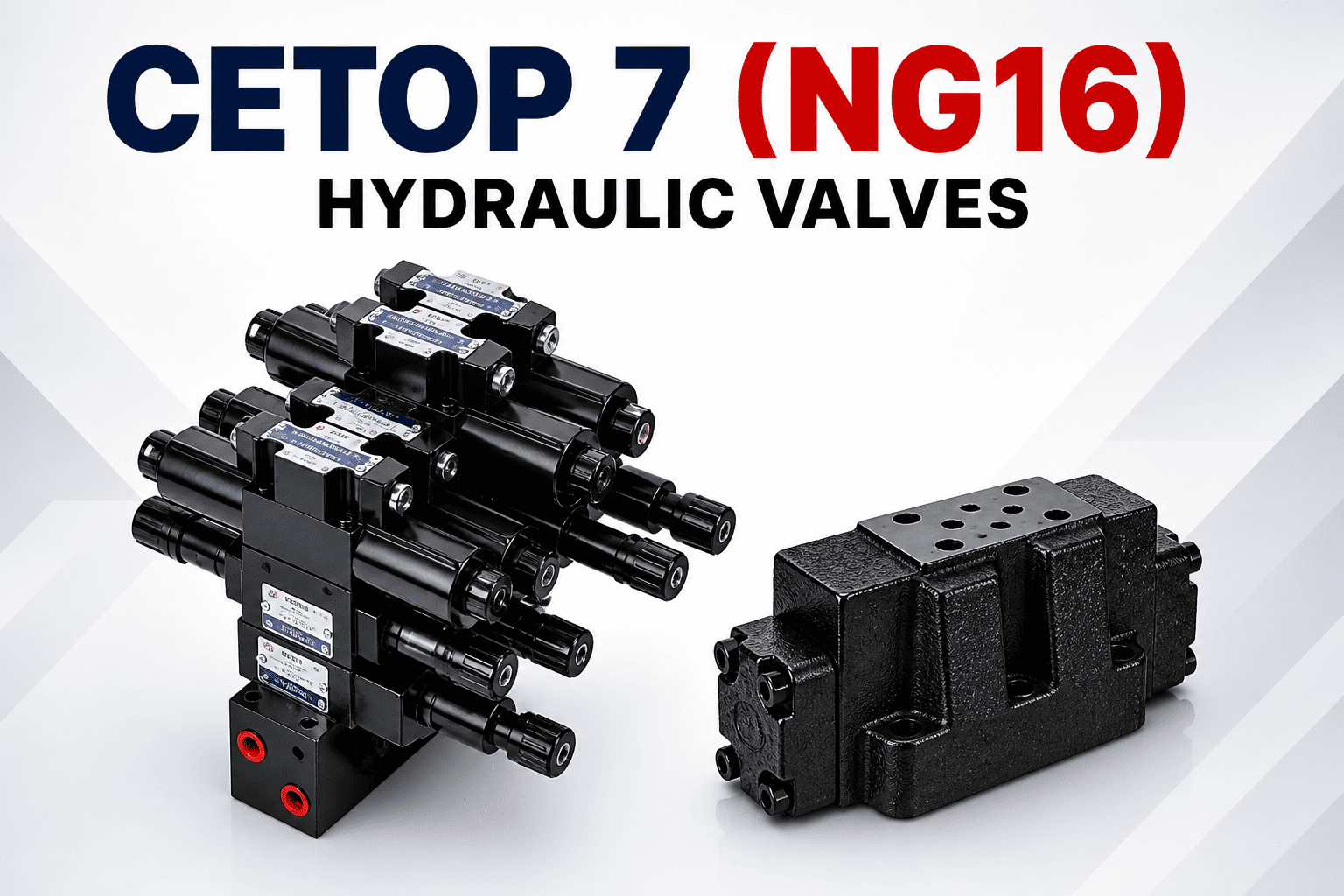

CETOP 7 (NG16) HYDRAULIC VALVES
CETOP 7 (NG16) hydraulic valves are standardized modular valves designed as per the ISO 4401-07 mounting interface. These valves are widely used in hydraulic systems for efficient control of direction, pressure, and flow in high-capacity applications.
Compared to CETOP 5 valves, CETOP 7 valves offer significantly higher flow capacity and superior performance, making them suitable for heavy-duty industrial operations where maximum power, reliability, and efficiency are required.
They ensure seamless interchangeability across manufacturers and can be easily installed on standardized subplates and manifolds.
Why Choose Us
Why Choose Our CETOP 7 (NG16) Hydraulic Valves ?
Reliable, standardized, and performance-focused hydraulic valve solutions for UAE industrial applications.
International Quality
High-quality international standard products built for dependable performance.
Brand Compatible
Compatible with major brands including Rexroth, Duplomatic, and more.
Fast Delivery
Competitive pricing with quick supply support for urgent industrial needs.
Technical Support
Expert product selection support with customization options available.
CETOP 7 (NG16): The Standard That Powers Reliable Hydraulic Systems
What is CETOP 7 (NG16)?
CETOP 7 (NG16) is a widely recognized hydraulic standard that defines the mounting interface, port configuration, and dimensional specifications for directional control valves used in high-capacity hydraulic systems.
CETOP 7 – Valve Mounting Standard
- CETOP 7 → Refers to the standardized valve mounting interface as per ISO 4401-07, ensuring uniform design across manufacturers.
- NG16 (Nominal Size 16) → Indicates the port size and flow capacity, suitable for high-flow and heavy-duty applications.
Key Features
- High flow capacity for large hydraulic systems
- Heavy-duty and durable construction
- Modular (sandwich) mounting system
- Easy installation and maintenance
- Wide range of valve functions available
- Suitable for continuous industrial operation
| Parameter | Specification |
|---|---|
|
Nominal Size |
NG16 |
|
Flow Rate |
Up to 150–200 L/min |
|
Operating Pressure |
Up to 315 bar |
|
Standard |
ISO 4401-07 |
|
Mounting Type |
Subplate / Manifold / Sandwich |
|
Control Type |
Solenoid / Manual / Pilot |
|
Operating Temperature
|
-20°C to +80°C (depending on seal type) |
Valve Categories
Types of CETOP 7 (NG16) Valves
Explore the major CETOP 7 valve types used for high-flow hydraulic control, pressure management, heavy-duty industrial operations, and modular system design.
Directional Control Valves
- Control high-volume hydraulic flow direction
- Used for heavy-duty cylinders and large hydraulic motors
Pressure Relief Valves
- Protect high-pressure systems from overload
- Ensure safety in heavy industrial applications
Pressure Reducing Valves
- Maintain stable reduced pressure levels
- Suitable for large-scale hydraulic circuits
Flow Control Valves
- Control actuator speed precisely
- Designed for high-flow applications
Check & Pilot Operated Check Valves
- Prevent reverse flow in high-load systems
- Provide secure load holding
Modular / Sandwich Valves
- Stackable design for compact heavy-duty systems
- Easy integration with NG16 manifolds
CETOP 5 (NG10) – Standard for High-Capacity Hydraulic Systems
CETOP 7 (NG16) HYDRAULIC VALVES
- Steel and metal industries
- Heavy machinery and equipment
- Mining and drilling systems
- Marine and offshore applications
- Oil & gas hydraulic systems
- Large hydraulic power packs
Key Advantages of CETOP 5 (NG10)
- Suitable for high-flow and heavy-duty systems
- Standardized design for easy replacement
- High reliability under continuous operation
- Modular flexibility for system design
- Long service life

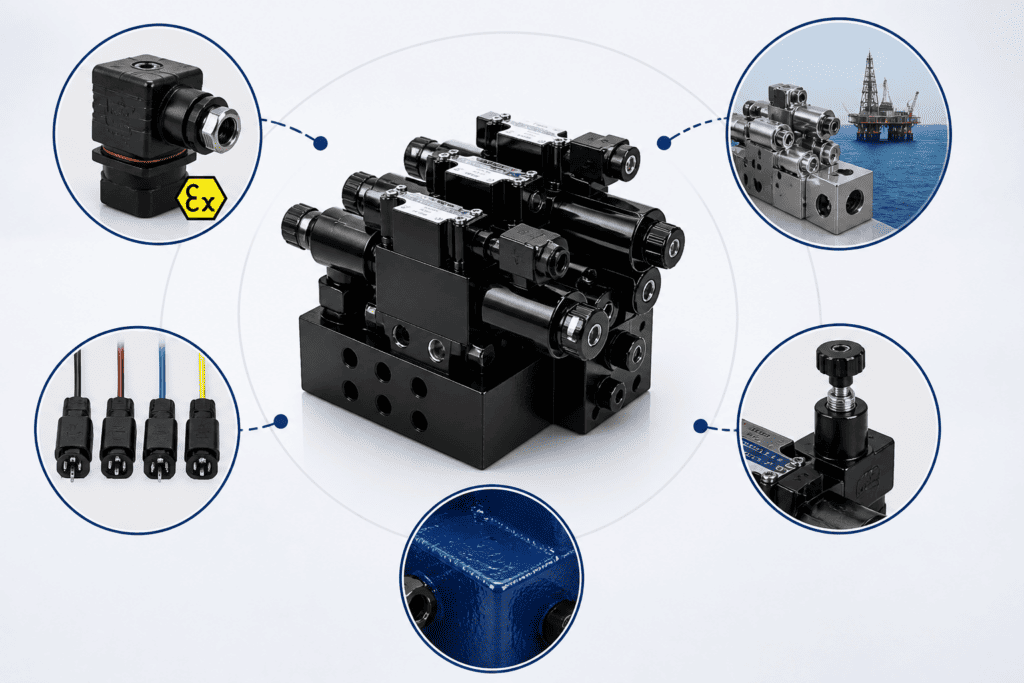

Optional Features & Configurations
- Explosion-proof solenoids (ATEX certified)
- Stainless steel construction for offshore use
- Multiple voltage options (12V, 24V, 110V, 230V)
- Manual override options
- Special coatings for corrosion resistance
