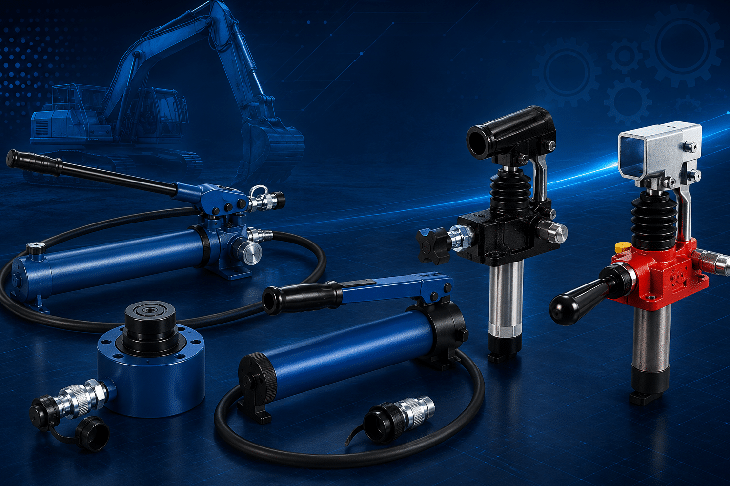

Interpump Hydraulic Hand Pumps

Interpump hand pumps are high-quality manual hydraulic pumps designed to generate hydraulic pressure through manual operation. These pumps are widely used in hydraulic systems where electrical or pneumatic power sources are unavailable, impractical, or not required.

Single-acting hand pumps are commonly used for applications where hydraulic force is required in one direction, while double-acting hand pumps (double delivery type) allow controlled hydraulic movement in both extension and retraction operations. Their robust construction and compact design make them suitable for demanding environments and field operations.

  • Manual hydraulic operation without external power source
  • Compatible with single and double-acting cylinders
  • Compact, portable, and easy to operate
  • Durable construction for industrial and mobile applications
  • Ideal for lifting, clamping, maintenance, and emergency hydraulic systems
Interpump Hand Pumps

Working Principle of Interpump Hand Pumps

Interpump hand pumps operate by manually generating hydraulic pressure through lever movement, ensuring reliable hydraulic operation without electrical power.

🖐

Manual Lever Operation

Manual lever movement creates hydraulic pressure for operating the hydraulic system.

💧

Hydraulic Oil Intake

Hydraulic oil is drawn from the reservoir into the pump chamber during operation.

⚙

Fluid Pressure Delivery

Pressurized hydraulic fluid is delivered efficiently to the hydraulic cylinder.

🔄

Cylinder Movement

Hydraulic pressure extends or retracts the cylinder for controlled system movement.

Features of Hydraulic Hand Pumps

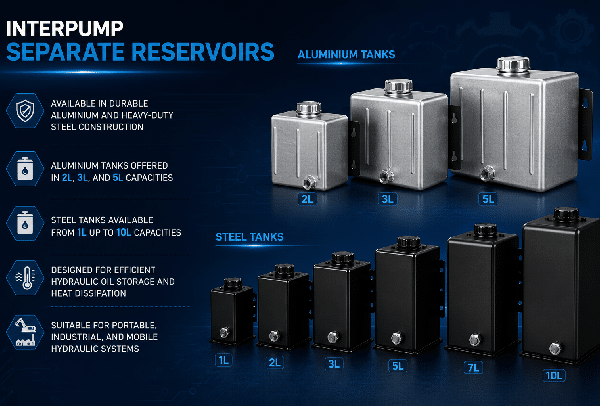

Interpump also provides separate reservoirs:

  • Available in durable aluminium and heavy-duty steel construction
  • Aluminium tanks offered in 2L, 3L, and 5L capacities
  • Steel tanks available from 1L up to 10L capacities
  • Designed for efficient hydraulic oil storage and heat dissipation
  • Suitable for portable, industrial, and mobile hydraulic systems



Key Features of Hydraulic Hand Pumps

  • Pressure range: up to ~380 bar
  • Displacement: 12 cc to ~49 cc per stroke
  • Options:
    • With / without control valve
    • Tank-mounted / standalone
  • Compact and rugged design for industrial use



Interpump hand pumps are used in:

  • Lifting & cranes
  • Earthmoving equipment
  • Marine & offshore
  • Agriculture
  • Mining & drilling
  • Mobile hydraulic systems

TYPES OF INTERPUMP HYDRAULIC HAND PUMPS

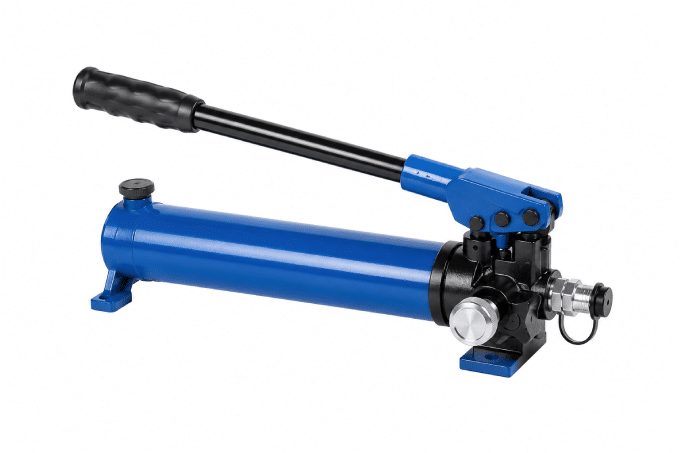

1. Single Acting Hand Pumps

Single acting hand pumps are designed for use with single-acting hydraulic cylinders, where the return movement is achieved through gravity or spring force. These pumps are compact, easy to operate, and commonly used for maintenance and service applications.

  • PAM 014-20-1 → 20 cc, 350 bar (with valve)
  • PAM 014-20-2 → 20 cc, 350 bar (without valve)
  • PAM 014-40-1 → 40 cc, 280 bar (with valve)
  • PAM 014-40-2 → 49 cc, 280 bar (without valve)
  • Simple and compact construction
  • Easy manual operation
  • Reliable hydraulic pressure generation
  • Ideal for portable maintenance tools

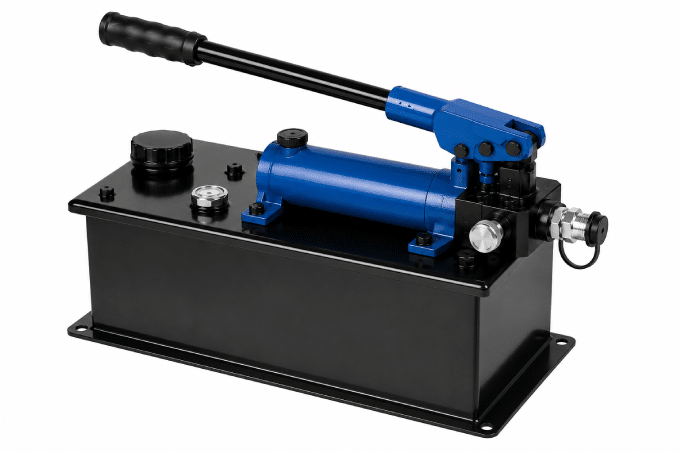

2. Tank-Mounted Single Acting Pumps

These hand pumps come with an integrated oil reservoir, making them suitable for portable hydraulic systems and field applications where a compact self-contained unit is required.

  • PAM-T12-2 → 12 cc, up to 380 bar
  • PAM-T25-2 → 25 cc, 350 bar
  • PAM-T45-2 → 45 cc, 280 bar
  • Integrated hydraulic oil tank
  • Portable and space-saving design
  • Suitable for mobile hydraulic operations
  • Easy installation and maintenance

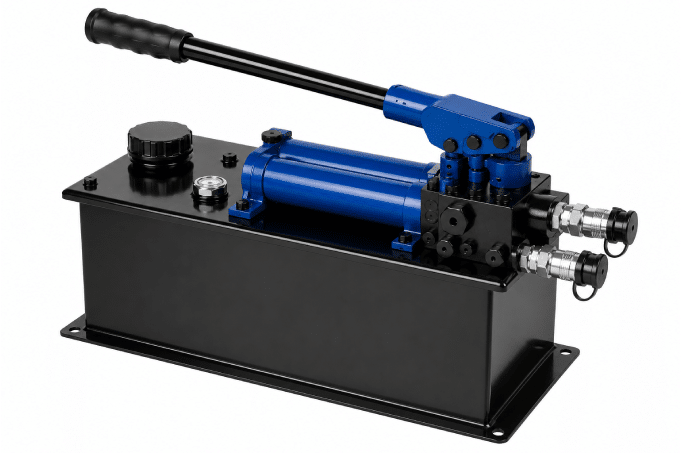

3. Tank-Mounted Double Acting Pumps

Tank-mounted double acting pumps are designed for double-acting hydraulic cylinders, providing controlled hydraulic movement in both extension and retraction directions.

  • PAM-TDV45-3 → 45 cc, 280 bar
  • PAM-TDV25-3 → 25 cc, 350 bar
  • PAM-TDV12-3 → 12 cc, 380 bar
  • Push and pull hydraulic operation
  • Precise bidirectional control
  • Suitable for controlled lifting and positioning
  • Reliable performance in industrial applications
+
Years of Excellence
+
Qualified Employees
K
Units Manufactured
K
Happy Clients
Why Choose Us

Why Choose Our Interpump Hand Pumps?

Our Interpump hand pumps are trusted for their high-pressure performance, rugged construction, and reliable operation across industrial and mobile applications.

⚙️

Wide Product Range

  • Available in single and double acting models
  • Suitable for multiple hydraulic applications
📈

High-Pressure Performance

  • Operating pressure up to 380 bar
  • Reliable hydraulic force generation
🛠️

Compact & Rugged Design

  • Portable and easy to handle
  • Built for demanding industrial environments
🔄

Flexible Installation Options

  • Available in tank-mounted versions
  • Standalone configurations also available
⚡

No External Power Required

  • Operates without electricity
  • Ideal for field and emergency applications
🏭

Industrial Application Ready

  • Suitable for mobile and industrial systems
  • Durable construction for long service life

Contact Us For Customer Pricing

Get in touch with our experts for reliable automation solutions tailored to your needs.
Get More Information
Contact Industy
Common Queries

Frequently Asked Questions About Our Interpump Hand Pumps

Didn’t find what you’re looking for?
write to us sales@arabianautomationuae.com
1. What Are Interpump Hand Pumps?
Interpump hand pumps are manual hydraulic pumps designed to generate hydraulic pressure for operating single and double-acting hydraulic cylinders without electrical power.
2.Where Are Interpump Hand Pumps Commonly Used?
These hand pumps are widely used in lifting equipment, construction machinery, marine systems, agriculture, mining, and mobile hydraulic applications.
3. What Are The Advantages Of Interpump Hand Pumps?
Interpump hand pumps offer portable operation, high-pressure performance, compact design, easy maintenance, and reliable hydraulic control for industrial use.
4.What Types Of Interpump Hand Pumps Are Available?
Interpump offers single-acting pumps, tank-mounted single-acting pumps, and tank-mounted double-acting pumps for different hydraulic applications.
5. What Should Be Considered While Selecting A Hand Pump?
Important factors include operating pressure, cylinder type, oil capacity, displacement per stroke, mounting type, and application requirements.
